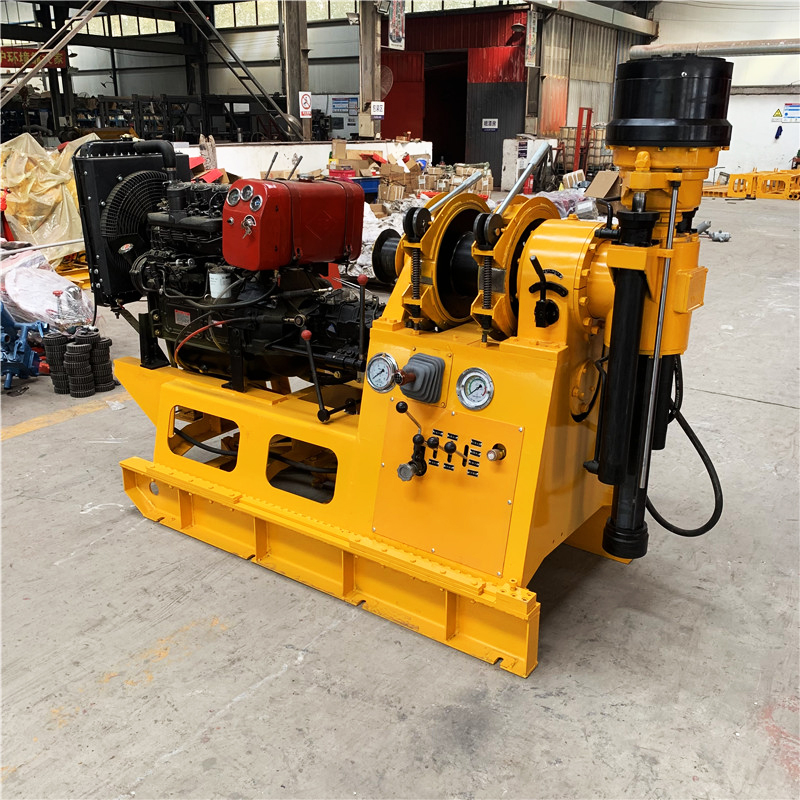

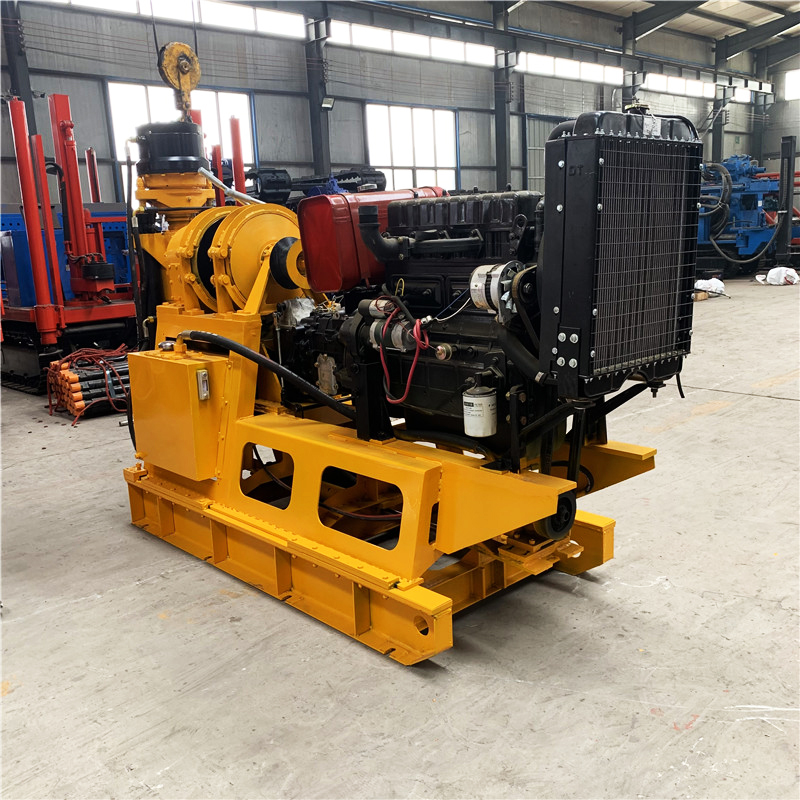

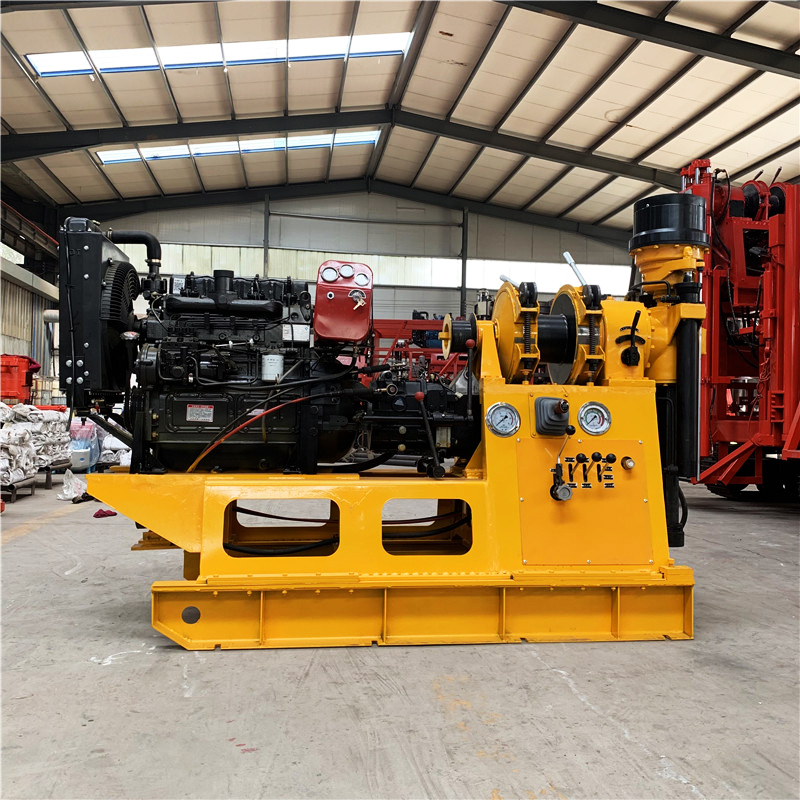

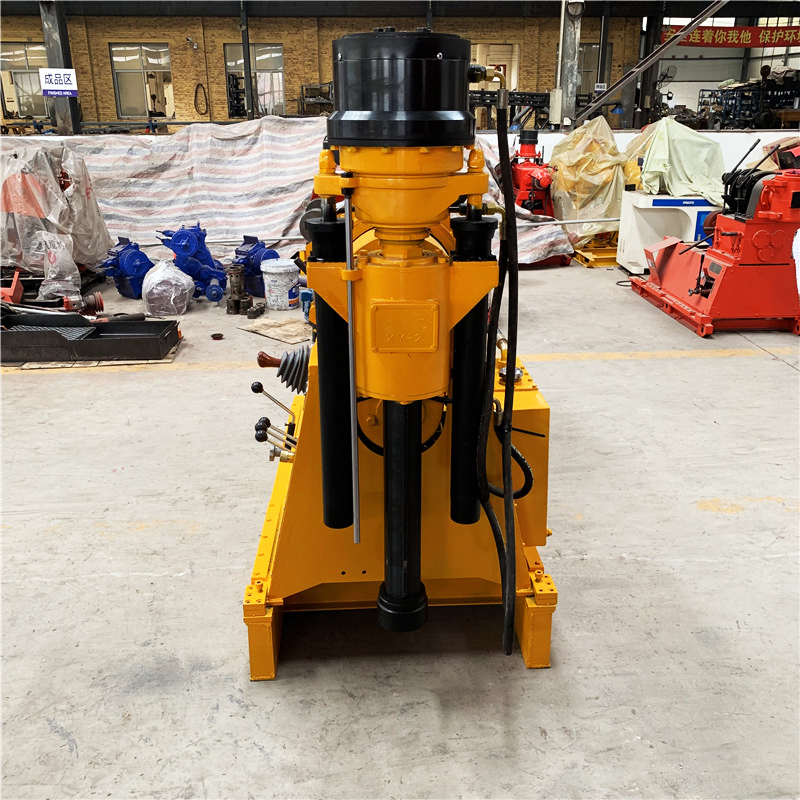

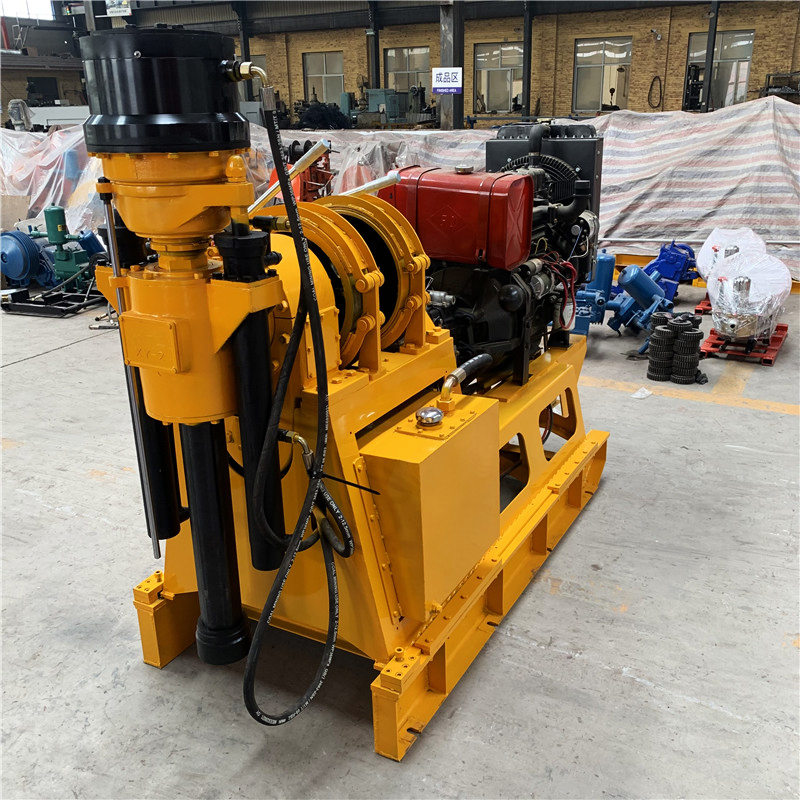

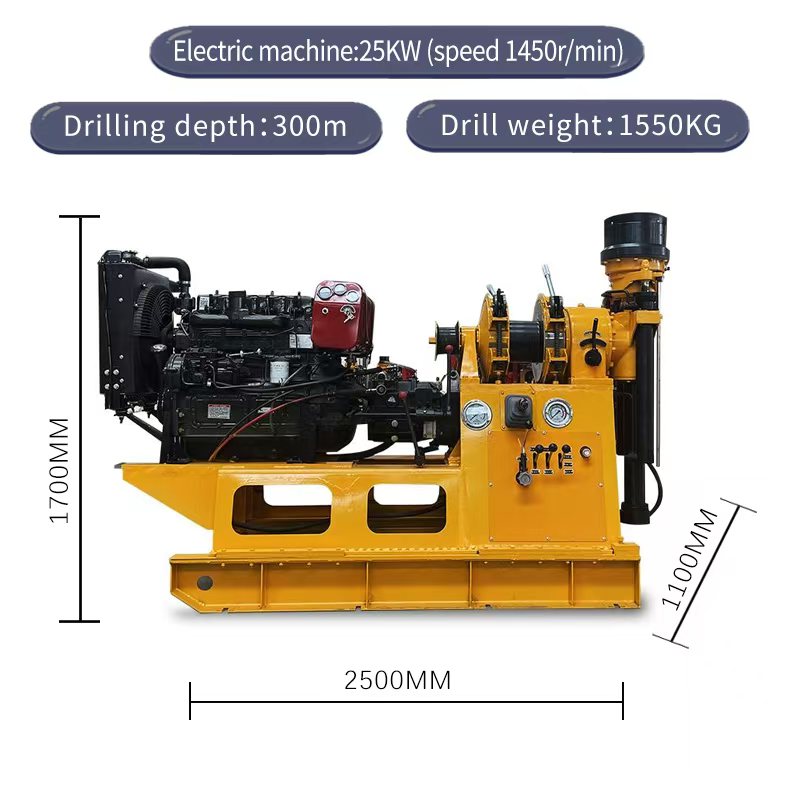

Feiyang XY-500 geological exploration rig

First, product introduction

Feiyang XY-500 is upgraded on the basis of reexploring XY-2, making the design of the rig itself more reasonable, and strengthening the important gear parts; Feiyang XY-500 is modified the automobile gearbox, the drilling rate is more uniform and stable, and the service life of the rig is greatly increased by this modification. It is one of the ideal equipment to meet the new market demand.

Scope of use:
Suitable for industrial and civil buildings and roads, railways, bridge foundations, dam sites, water conservancy, Wells, prospecting and other engineering geological investigation work, shallow oil and gas mining, mine tunnel ventilation, drainage, and small-caliber foundation pile hole construction, solid deposit survey and exploration, blasting holes with various concrete structure inspection holes.

Second, the characteristics of the rig

1, reasonable speed range, speed series has eight levels, centralized speed change, mutual self-locking.

2, low speed, large torque, wide range of use, strong drilling ability, can be applied to drilling rig sampling, drilling and pile foundation construction.
3, the rig has two reverse speed, easy to safely handle the fault.
4, the rotary chuck adopts hydraulic chuck, clamping reliable, does not hurt the active drill rod, and can be implemented without stopping the rod down.
5, oil pressure feed, simple operation, high drilling efficiency, low labor intensity.
6, equipped with hydraulic instruments, is conducive to mastering the situation in the hole, the control handle is less, the layout is more reasonable, the operation is flexible and reliable.

7, the use of double disc normally closed friction clutch, open and close flexible, easy to operate and adjust.
8. Equipped with front and rear moving cylinder, the gyro moves 465MM backward, which brings a lot of convenience to the drilling tool.
9, compact structure, small size, light weight, easy to disassemble, easy to disassemble and carry, can be applied to the drilling work in hills or mountains.
